1.Photo of agglomerator

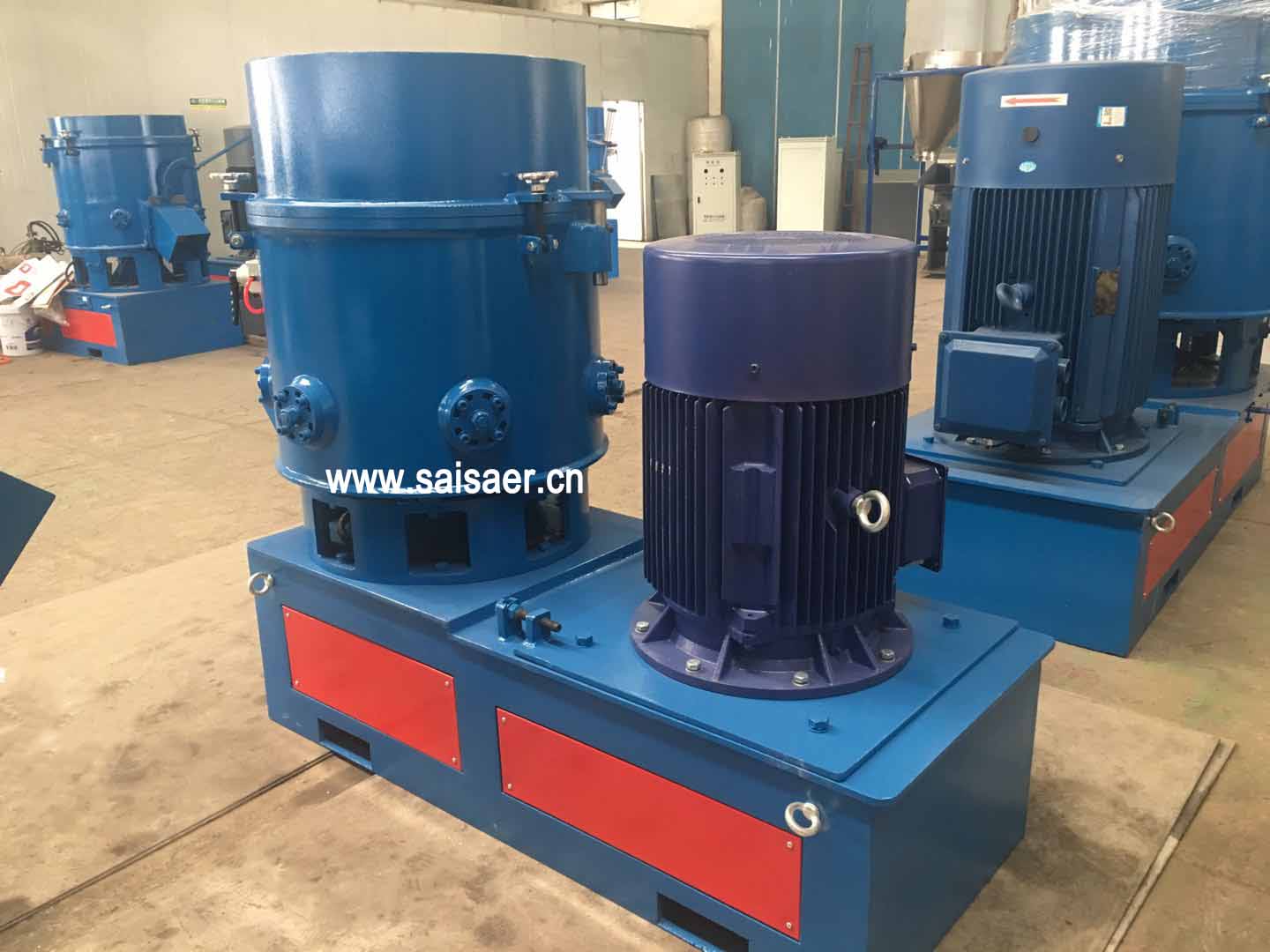

1-1.Main machine of crushing machine

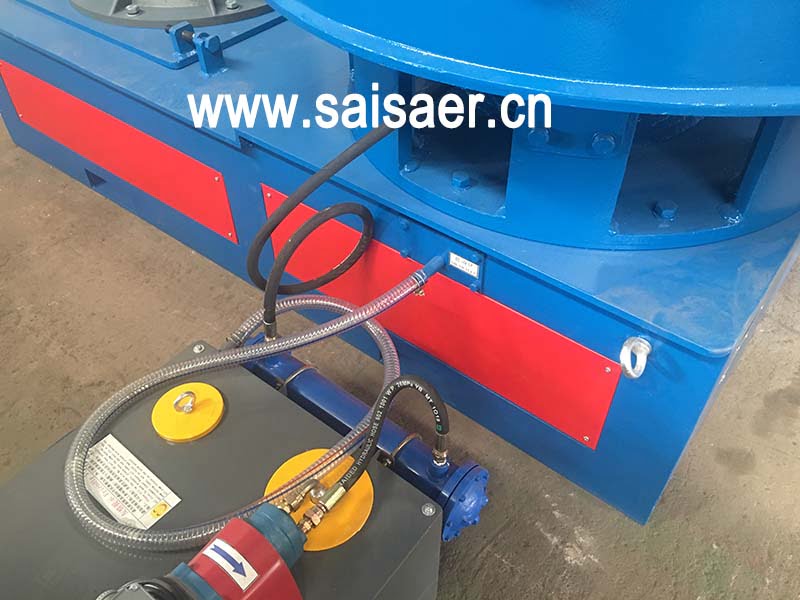

1-2.Continuous forcing oil lubrication system
2.video of agglomerator
3.The parameters of agglomerator
3-1.GSL series agglomerator for PP PE etc film
| Model | GSL100 | GSL200 | GSL300 | GSL500 | GSL600 | GSL800 | GSL1500 |
|---|---|---|---|---|---|---|---|
| Speed（r/min） | 1050 | 1050 | 950 | 850 | 750 | 750 | 650 |
| Capacity(kg/h) | 80-120 | 100-150 | 150-250 | 300-400 | 350-450 | 500-600 | 800-1000 |
| Motor(kw) | 37 | 45 | 55 | 90 | 110 | 132 | 200 |
| Voltage(V) | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
| Volume(L) | 100 | 200 | 300 | 500 | 600 | 800 | 1500 |
| Weight(kg) | 1000 | 1200 | 1800 | 2500 | 2700 | 3000 | 5000 |
| Dimension(m) | 1.7*0.75*1.5 | 1.7*0.85*1.5 | 2*0.85*1.6 | 2.3*0.95*1.7 | 2.3*1.1*1.75 | 2.5*1.25*1.8 | 3*1.6*2.1 |
| Rotating blade | 2 | 2 | 2 | 4 | 4 | 4 | 4 |
| Fixed blade | 6 | 6 | 6 | 8 | 8 | 8 | 8 |
| lubricating way | Oil | Oil | Oil | Pressure | Pressure | Pressure | Pressure |
3-2.GHX series agglomerator for pet etc chemical fiber material
| Model | GHX100 | GHX300 | GHX400 | GHX500 |
|---|---|---|---|---|
| Speed（r/min） | 1050 | 950 | 850 | 750 |
| Capacity(kg/h) | 150-200 | 300-400 | 400-500 | 600-800 |
| Motor power(kw) | 55 | 90 | 110 | 160 |
| Voltage(V) | 380 | 380 | 380 | 380 |
| Volume(L) | 100 | 300 | 400 | 500 |
| Weight(kg) | 1100 | 1900 | 2000 | 3000 |
| Dimension(m) | 1.7*0.75*1.5 | 2*0.85*1.6 | 2*0.85*1.6 | 2.3*0.95*1.7 |
| Rotation blade | 2 | 4 | 4 | 4 |
| Fixed blade | 6 | 8 | 6~8 | 6~8 |
| Lubricating way | Oil | Pressure | Pressure | Pressure |

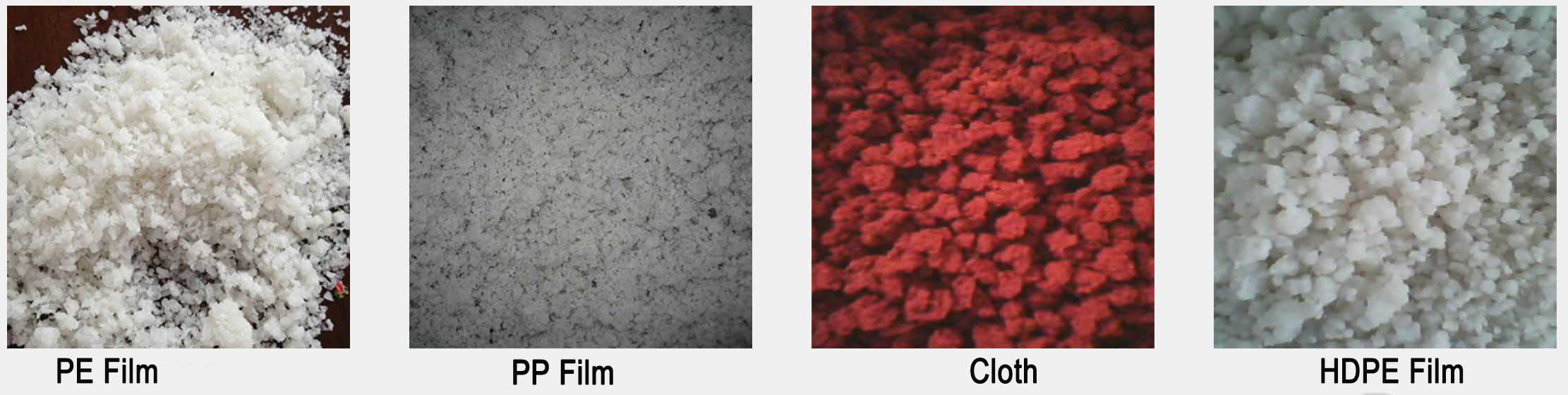

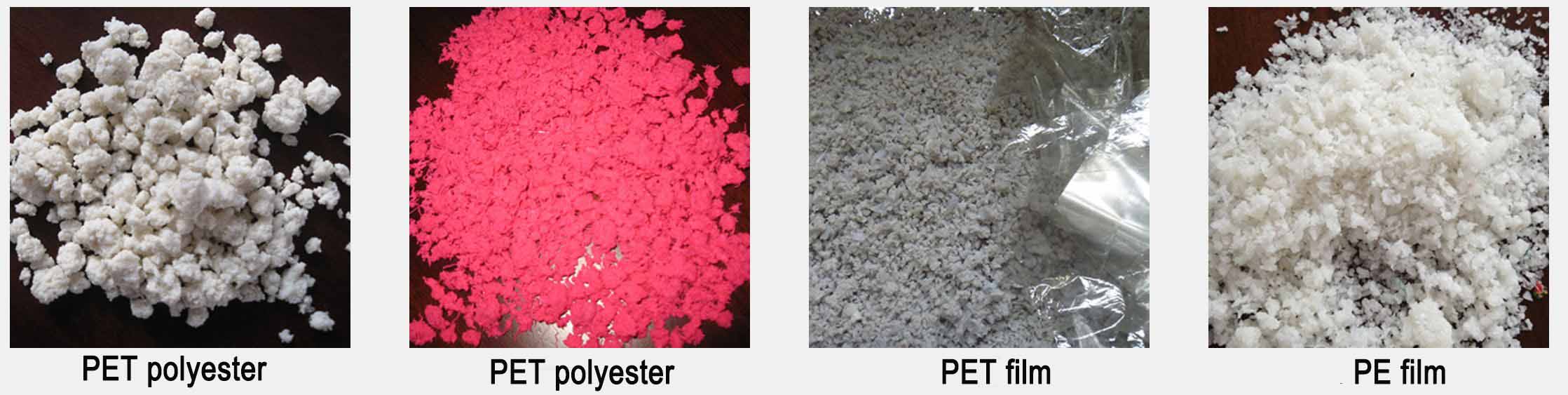

4.Samples which are produced by our agglomerator
