1.Single step plastic pelletizing machine

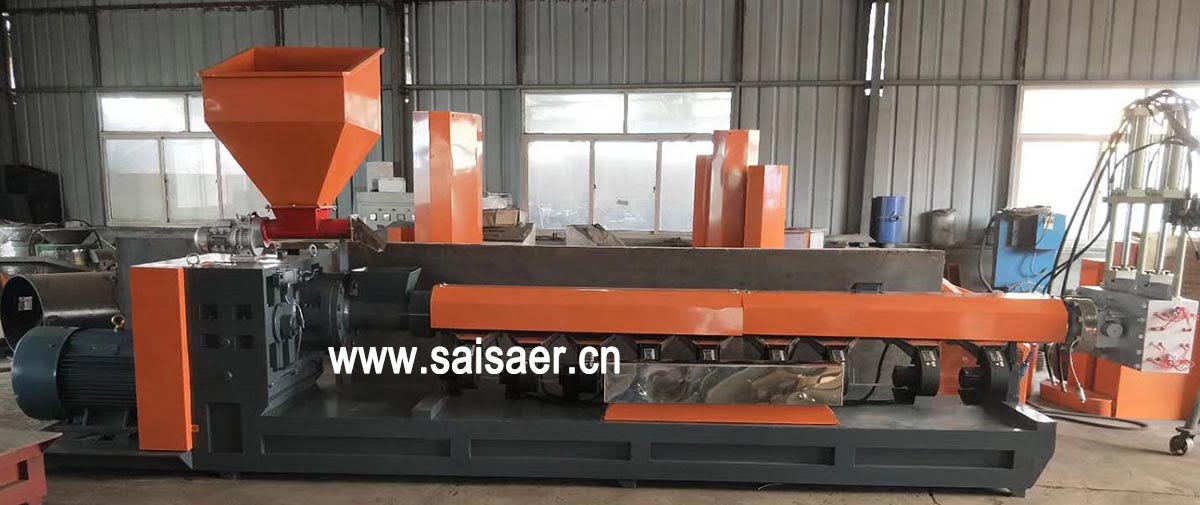

1-1.Singel Step Pelletizing Machine(water ring type cutting granule or strand cutting granule)
2.Two step plastic pelletizing machine
2-1.With agglomerator for plastic film recycling pelletizing(water ring type cutting granule or strand cutting granule)
2-2.Pelletizing machine for hard block material(water ring type cutting granule or strand cutting granule)
2-3.The video of two step plastic pelletizer
3.Three steps plastic pelletizer machine

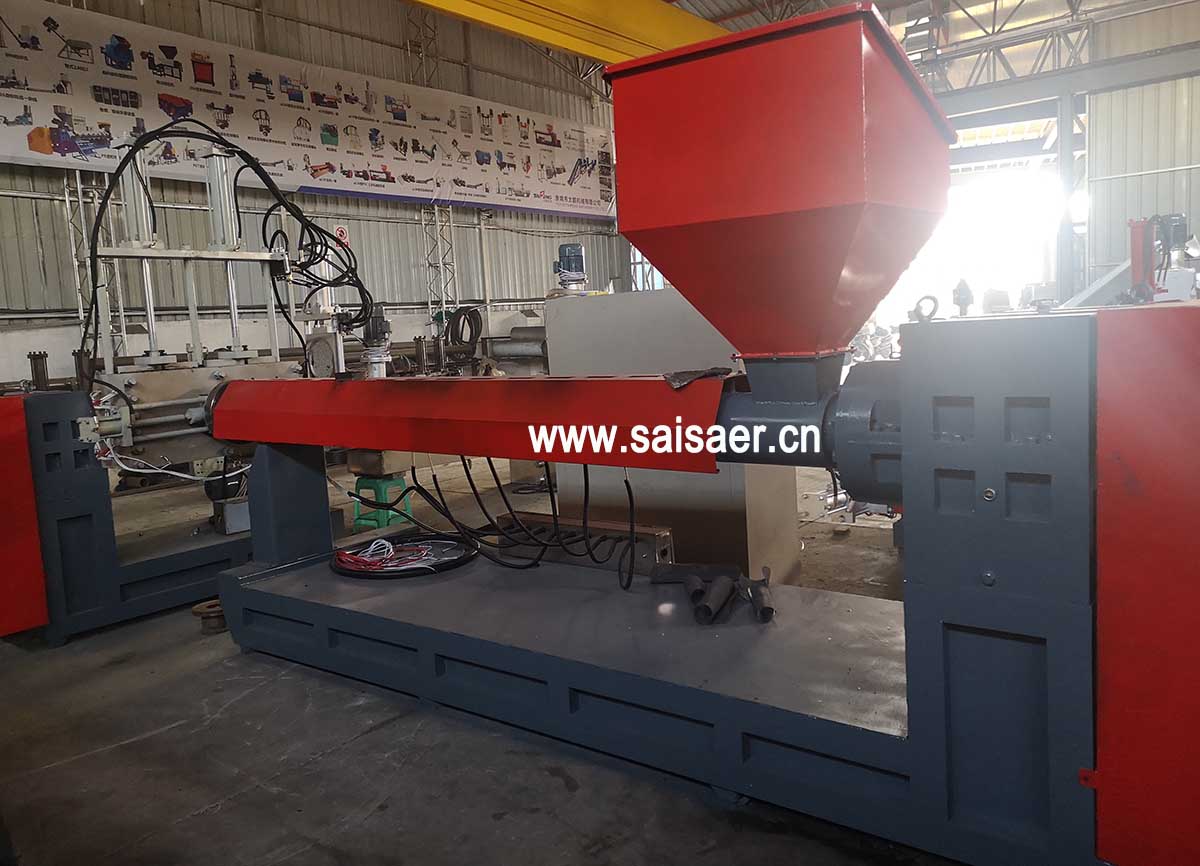

Main extruder

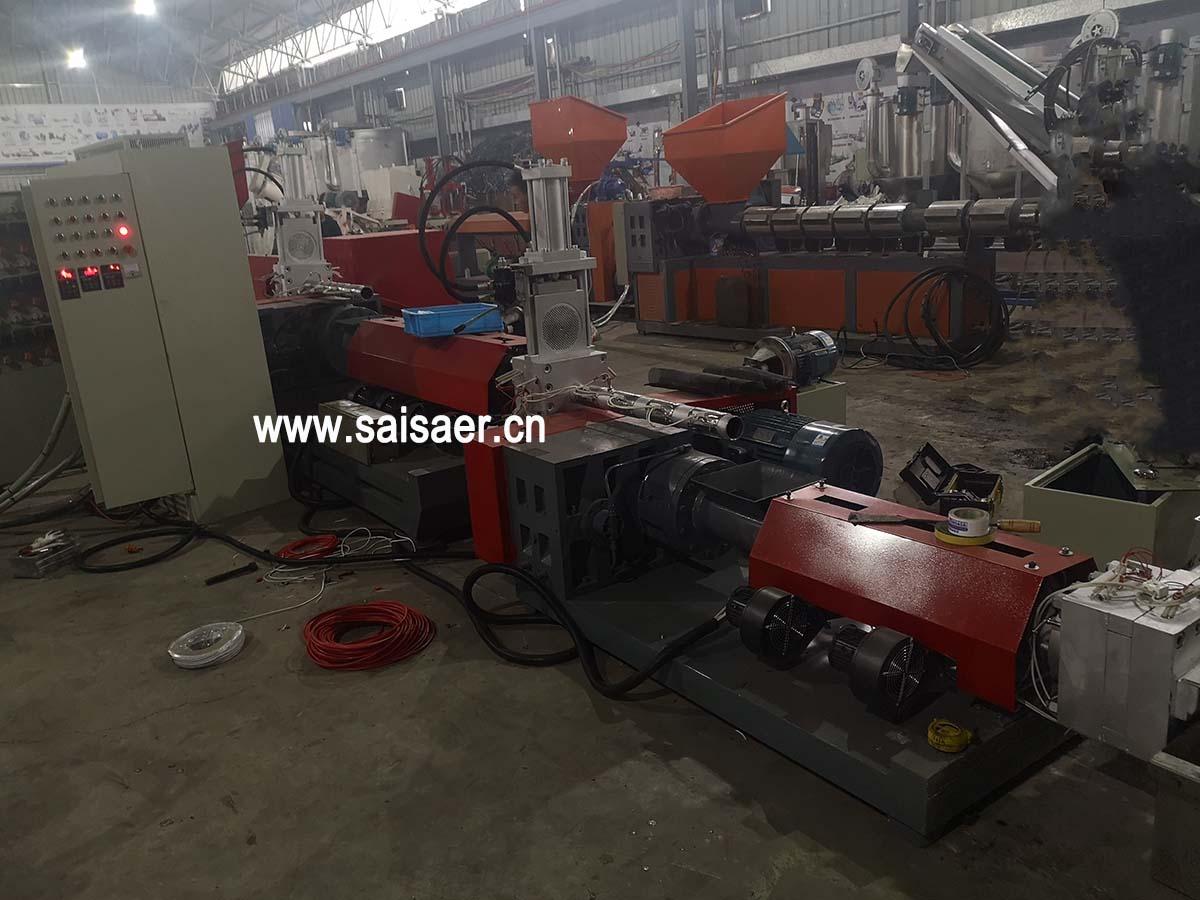

Second extruder and third extruder
The video of three step plastic pelletizer
4.Main technical parameters
Main extruder(Max.rotation speed of screw:70RPM,Screw l/D 16:1-28:1)
| Model | Screw dia(mm) | Motor power(Kw) |
| SJ100 | 100 | 15-30 |
| SJ110 | 110 | 22-37 |
| SJ120 | 120 | 37-45 |
| SJ130 | 130 | 45-55 |
| SJ140 | 140 | 55-75 |
| SJ150 | 150 | 75-90 |
| SJ160 | 160 | 75-110 |
| SJ170 | 170 | 75-110 |
| SJ180 | 180 | 75-132 |
Sub extruder(second extruder and third extruder)(Max.rotation speed of screw:70RPM,Screw L/D 10:1 or 12:1)
| Model | Screw dia(mm) | Motor power(Kw) |
| SJ100 | 100 | 7.5-11 |
| SJ110 | 110 | 7.5-11 |
| SJ120 | 120 | 11-15 |
| SJ130 | 130 | 15-18.5 |
| SJ140 | 140 | 15-22 |
| SJ150 | 150 | 15-22 |
| SJ160 | 160 | 18.5-30 |
| SJ170 | 170 | 18.5-30 |
| SJ180 | 180 | 22-37 |
Capacity of pelletizing machine for reference
| Model | Capacity(kg/h) |
| SJ100 | 80-100 |
| SJ110 | 100-120 |
| SJ120 | 110-150 |
| SJ130 | 120-180 |
| SJ140 | 150-220 |
| SJ150 | 180-250 |
| SJ160 | 200-280 |
| SJ170 | 250-300 |
| SJ180 | 280-350 |
|
|
5.You may interested in blow products
6.the diference among machine of quality pelletizing,cost performance pelleting and economic pelletizing
- For the high capacity pelletizing machcine, the improved structure is with full package.
- For the economic pelletizingmachine,the improved structure is with hard gear face reducer,with semi-package.The frame is made of square tube and steel plate.
| High capacity pelletizing machine | Cost performance pelletizing machine | Economic pelletizing machine | |
|---|---|---|---|
| Struture | standar or improved | standard | standard or improved |
| Agglomerator | Optional | Optional | No |
| Screw speed | 120rpm | 70rpm | 55rpm |
| Conneting way between motor and gearbox | Direct | Belt and wheel | Belt and wheel |
| Gearbox | ZLYJ series | ZLYJ series | JZQ or ZQF (ZLYJ optional) |
| Gearbox brand | GUOMAO(famous brand) | SHUGUANG | Common brand of China |
| Screw and barrel material | 38CrMoAL(high speed) or alloy steel | 38CrMoAL | 45# steel |
| Screw and barrel brand | JWELL(famous brand) | Made in Zhou Shan | Made in Shang Dong |
| Screw diameter range | 85mm-180mm | 100mm-180mm | 105mm-215mm |
| Motor power/screw diameter | High | Middle | Low |
| Screen exchanger | Plate type or Cylinder type (hydraulic pressure) | Plate type(electric or hydraulic pressure) | Electric round type (hydraulic pressure plate typeoptional) |
| Screen exchanger material | 38CrMoAl | 45# steel | 45# steel |
| Granule cutting type | Water ring or strand bar | Water ring or strand bar | Strand bar |
| Extruder numbers | 1 or 2 | 1 or 2 or 3 | 1 or 2 or 3 |
| Heater | Casting aluminum heater+stainless steel | ceramic heater+stainless steel | Quartz tube heater+galvanized iron steel heater |
| Electromagnetic heater | No | Optional | Optional |
| Water flume and storage tank material | 304 stainless steel | 201 stainless steel | Galvanized iron steel |
| Granule cutting machine | LQ series (cantilever or gantry) | FPB rolling bladetype seies | sheet blade type (rolling blade optional) |
| Frequency drive | Yes | Yes | optional |
| Frequency drive brand | SIMENS,OMORON or SCHNEIDER etc famous brand in internation | DELTA(TAIWAN) | Common brand of China |
| Motor brand | WANNAN or BEIDE(SIMENS) | Brand of China | Brand of China |
| Motor model | YX3VP sereis | YE2VF series | YE2 series |
| Low voltage appliance | SIMENS or SCHNEIDER | CHINTor DELIXI of China | Common brand of China |
| Temperature meter | OMORON | YATAI(China) | Common brand of China |
| Current mter | Brand of China | Brnd of China | Brand of China |
| Investment | High | Middle | Low |
| Human cost/kg | Low | Middle | High |
| Energy cost/kg | Low | Middle | HIgh |
| Applicable factory | Big scale factory or cost of labor is high | Middle scale factory | Small scale factory or beginner or material is very diry |
