1.Single step economic plastic pelletizing machine
1-1.Economic pelletizing
1-2.Economic pelletizing with conveyor,force feeder and electrimagnetic heater
1-3.The video of single step economic pelletizer

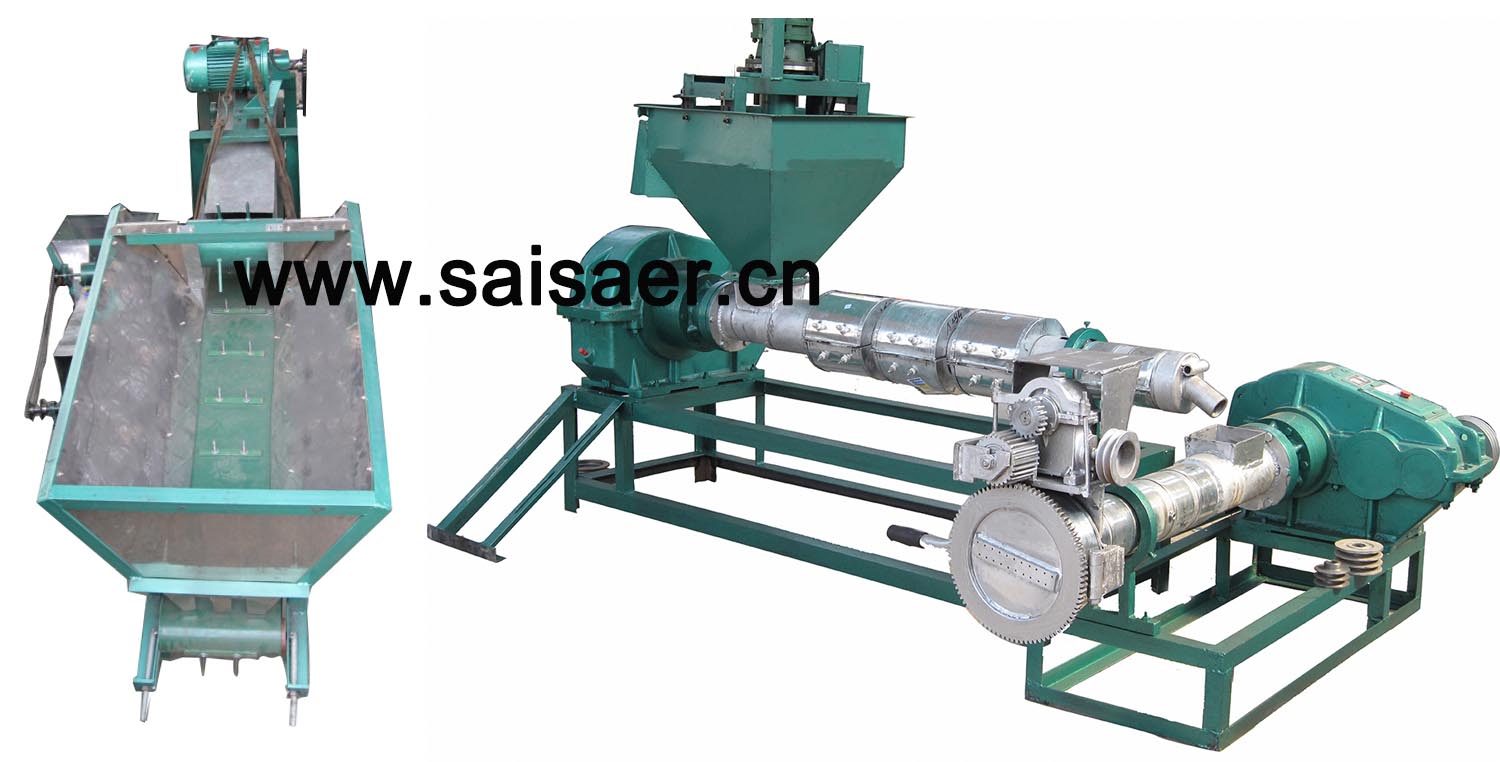

2.Two steps pelletizing machine
2-1.Economic pelletizing with conveyor,force feeder

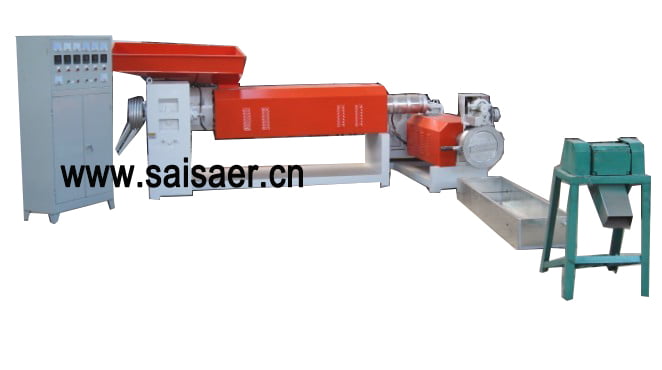

2-2.Improved economic pelletizing machine(adopt hard gear face reducer)
2-3.The video of economic two steps plastic pelletizer)
3.The video of three steps economic pelletizing machine
4.Main parts of economic pelletizing

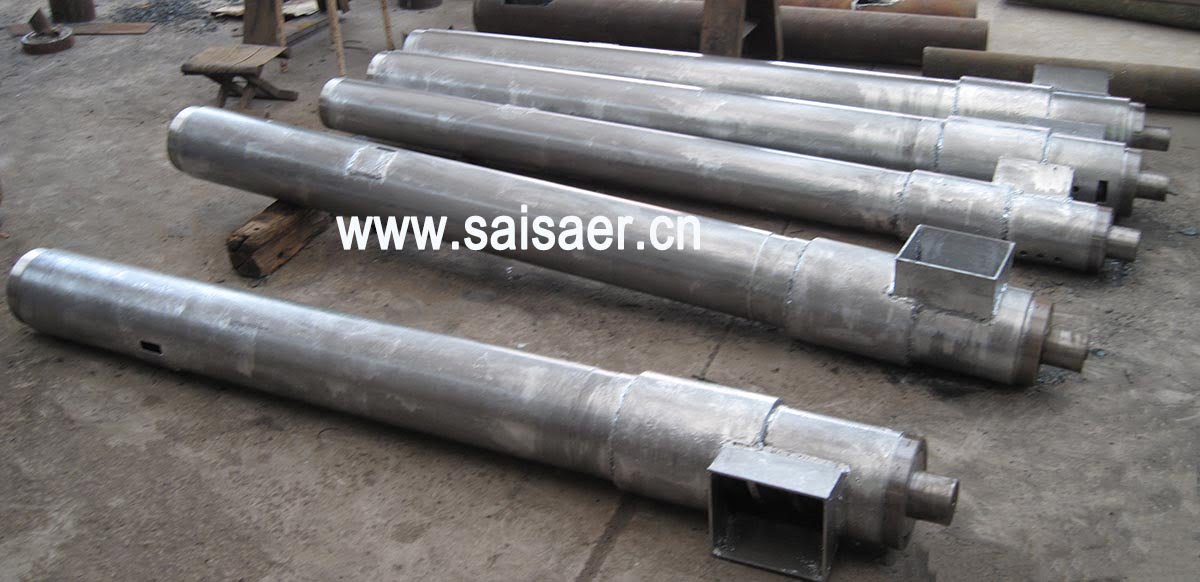

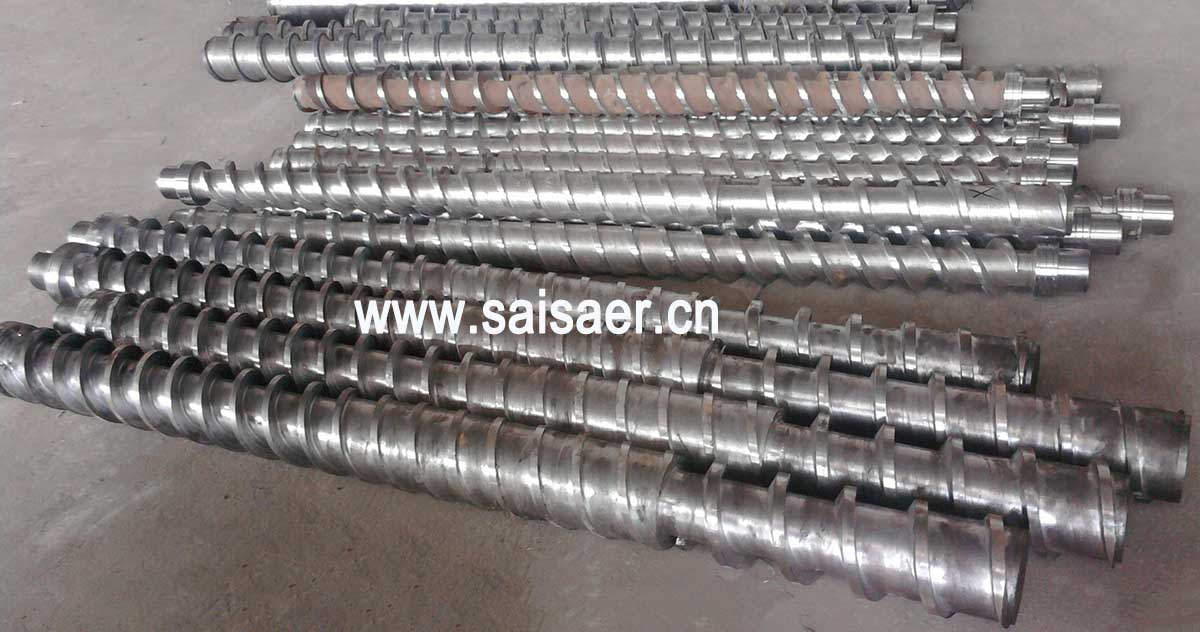

4-1.Screw and barrel 45# steel
4-2.series soft gear face reducer(round JZQ or square ZQF)
4-3.Electric screen exchanger

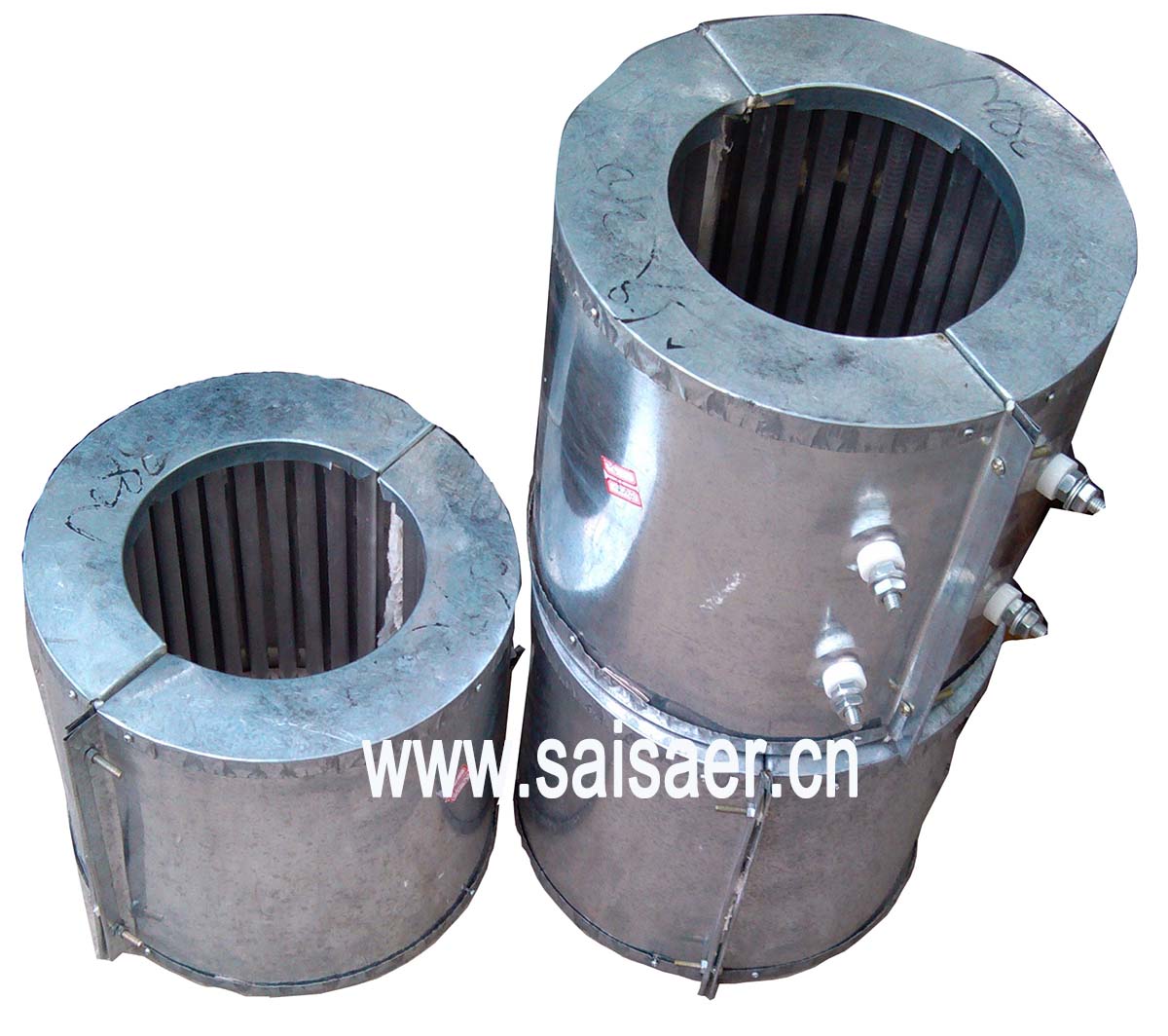

4-4.Quartz tube heater

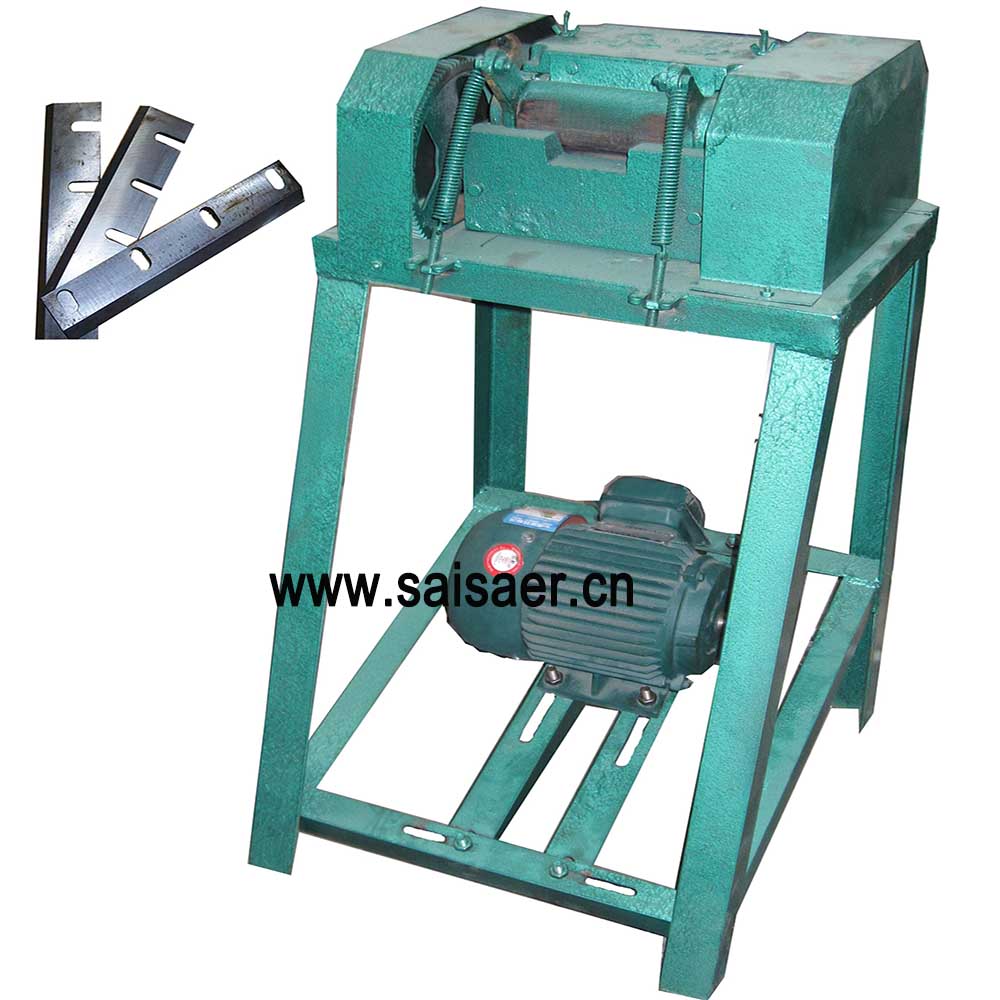

4-5.Blade type granule cutting machine
5.Main technical parameters of economic plastic pelletizing
5-1.Main extruder parameters
| SJ105 | SJ125 | SJ145 | SJ175 | SJ215 | |
| Screw dia | 105mm | 125mm | 145mm | 175mm | 215mm |
| Heating power | 30Kw | 35Kw | 40Kw | 50Kw | 70Kw |
| Gearbox | JZQ400 | JZQ400 | JZQ500 | JZQ650 | JZQ750 |
| Screw length | 1800mm-2400mm | ||||
5-2.Sub extruder parameters(second extruder and third extruder)
| SJ105 | SJ125 | SJ145 | SJ175 | |
| Screw dia | 105mm | 125mm | 145mm | 175mm |
| Heating power | 8Kw | 11Kw | 16Kw | 22Kw |
| Gearbox | JZQ300 | JZQ300 | JZQ400 | JZQ500 |
| Screw length | 900mm-1300mm | |||
4-3.The capacity and selection of economic pelletizing machine
| Model | Capacity |
| SJ105 | 60-80kg/h |
| SJ125 | 80-100kg/h |
| SJ145 | 100-120kg/h |
| SJ175 | 120-160kg/h |
| SJ215 | 180-200kg/h |
|
|
6.You may interested in blow products
7.the diference among machine of quality pelletizing,cost performance pelleting and economic pelletizing
- For the high capacity pelletizing machcine, the improved structure is with full package.
- For the economic pelletizingmachine,the improved structure is with hard gear face reducer,with semi-package.The frame is made of square tube and steel plate.
| High capacity pelletizing machine | Cost performance pelletizing machine | Economic pelletizing machine | |
|---|---|---|---|
| Struture | standar or improved | standard | standard or improved |
| Agglomerator | Optional | Optional | No |
| Screw speed | 120rpm | 70rpm | 55rpm |
| Conneting way between motor and gearbox | Direct | Belt and wheel | Belt and wheel |
| Gearbox | ZLYJ series | ZLYJ series | JZQ or ZQF (ZLYJ optional) |
| Gearbox brand | GUOMAO(famous brand) | SHUGUANG | Common brand of China |
| Screw and barrel material | 38CrMoAL(high speed) or alloy steel | 38CrMoAL | 45# steel |
| Screw and barrel brand | JWELL(famous brand) | Made in Zhou Shan | Made in Shang Dong |
| Screw diameter range | 85mm-180mm | 100mm-180mm | 105mm-215mm |
| Motor power/screw diameter | High | Middle | Low |
| Screen exchanger | Plate type or Cylinder type (hydraulic pressure) | Plate type(electric or hydraulic pressure) | Electric round type (hydraulic pressure plate typeoptional) |
| Screen exchanger material | 38CrMoAl | 45# steel | 45# steel |
| Granule cutting type | Water ring or strand bar | Water ring or strand bar | Strand bar |
| Extruder numbers | 1 or 2 | 1 or 2 or 3 | 1 or 2 or 3 |
| Heater | Casting aluminum heater+stainless steel | ceramic heater+stainless steel | Quartz tube heater+galvanized iron steel heater |
| Electromagnetic heater | No | Optional | Optional |
| Water flume and storage tank material | 304 stainless steel | 201 stainless steel | Galvanized iron steel |
| Granule cutting machine | LQ series (cantilever or gantry) | FPB rolling bladetype seies | sheet blade type (rolling blade optional) |
| Frequency drive | Yes | Yes | optional |
| Frequency drive brand | SIMENS,OMORON or SCHNEIDER etc famous brand in internation | DELTA(TAIWAN) | Common brand of China |
| Motor brand | WANNAN or BEIDE(SIMENS) | Brand of China | Brand of China |
| Motor model | YX3VP sereis | YE2VF series | YE2 series |
| Low voltage appliance | SIMENS or SCHNEIDER | CHINTor DELIXI of China | Common brand of China |
| Temperature meter | OMORON | YATAI(China) | Common brand of China |
| Current mter | Brand of China | Brnd of China | Brand of China |
| Investment | High | Middle | Low |
| Human cost/kg | Low | Middle | High |
| Energy cost/kg | Low | Middle | HIgh |
| Applicable factory | Big scale factory or cost of labor is high | Middle scale factory | Small scale factory or beginner or material is very diry |
