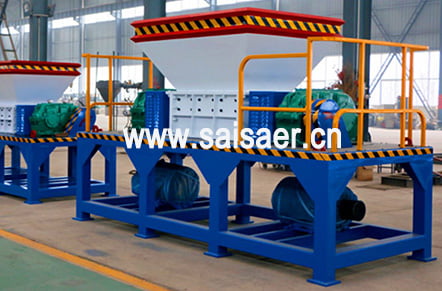

1.Type of Double Shaft Shredding Machine

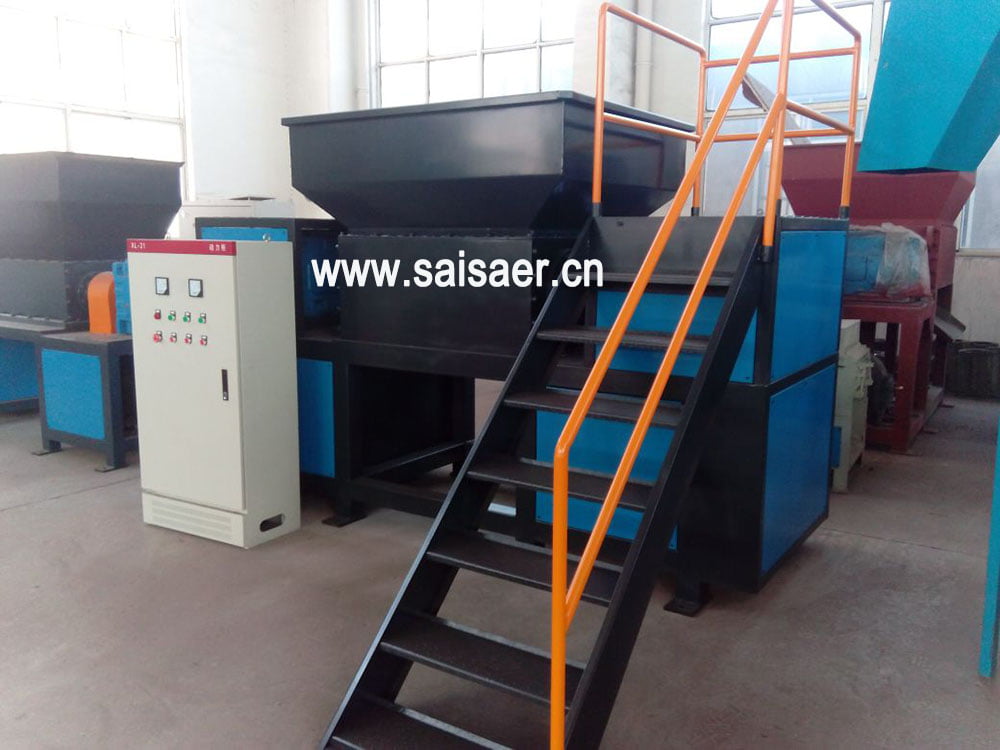

Double Shaft Shredding Machine(adopt JZQ Or ZQ Series Gear Reducer)

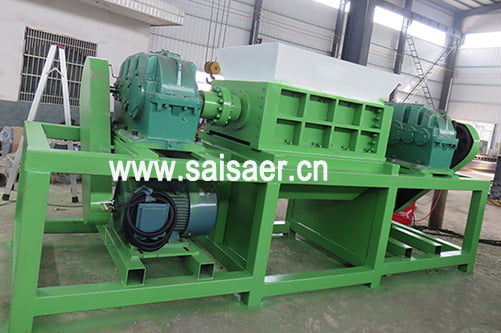

Double Shaft Shredding Machine(Adopt ZSY Series Gear Reducer)

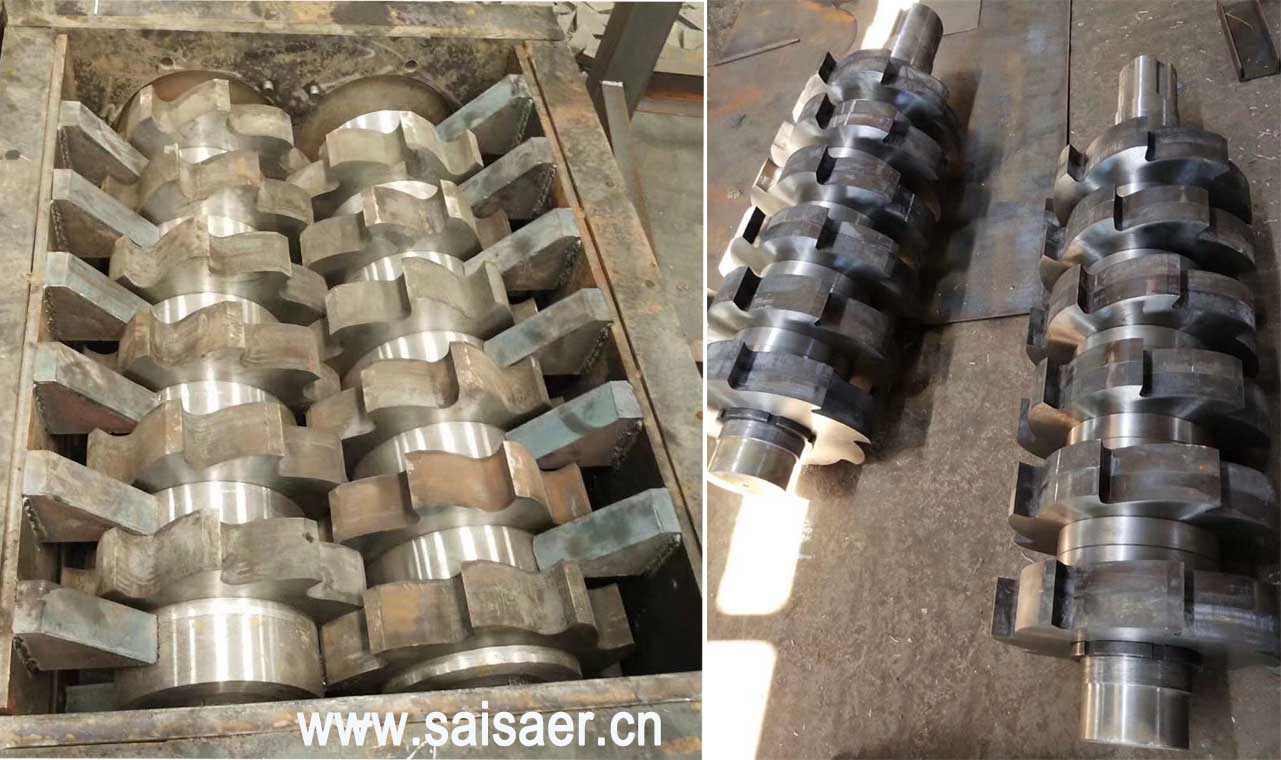

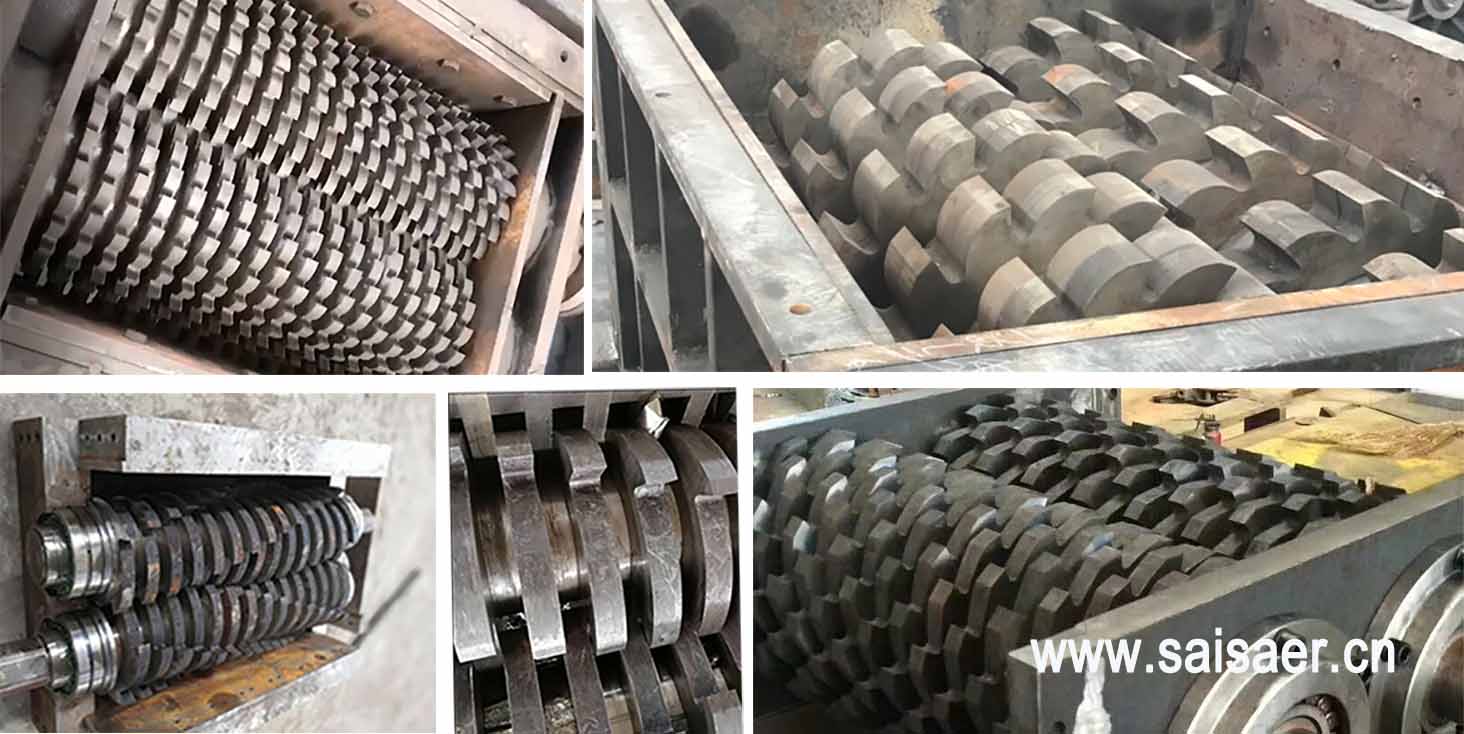

2.The Blade and Shaft of Double Shaft Shredding Machine
3.The Application of Double Shaft Shredding Machine
4.The Parameters of Double Shaft Shredding Machine
- Shaft rotation speed:10-90rpm
- Working pressure:6-10Mpa
| Model | 600 | 800 | 1000 | 1200 |
| Spindle power（Kw) | 15Kw*2 | 18.5Kw*2 | 30Kw*2 | 37Kw*2 |
| Spindle speed(Rpm) | 18-20 | 18-35 | 18-35 | 18-35 |
| Output(ton) | 2-3 | 3-5 | 5-8 | 6-10 |
| Conveyor power(Kw) | optional | optional | optional | optional |
| Knife plate number(PCS) | ||||
| Knife plate diameter(mm) | 350 | 360 | 360 | 500 |
| Broken size(mm) | 3-10 | 3-10 | 3-10 | 3-10 |
| Silo size(m) | 0.82*0.9 | 0.9*1 | 1.2*1 | 1.4*1 |
| L*W*H(m) | 2.6*2*1.9 | 2.8*2*1.9 | 3*2*1.9 | 3.2*2*1.9 |
| Weight(ton) | 3.5 | 4.5 | 6.5 | 8.5 |
| Model | 1400 | 1600 | 1900 | 2200 | 2600 |
| Spindle power(Kw) | 45Kw*2 | 75Kw*2 | 90Kw*2 | 110Kw*2 | 160Kw*2 |
| Spindle speed(Rpm) | 14-35 | 14-25 | 14-25 | 16-25 | 16-25 |
| Output(ton) | 8-12 | 12-18 | 16-22 | 20-26 | 25-60 |
| Conveyor power(Kw) | 3-4 | 3-4 | 3-4 | 3-4 | 3-4 |
| Knife plate number(pcs) | |||||
| Knife plate diameter(mm) | 550 | 550 | 560 | 1000 | 1000 |
| Broken size(mm) | 3-10 | 3-10 | 3-10 | 3-10 | 3-10 |
| Silo size(m) | 2*2 | 2.6*2 | 2.3*2 | 2.5*1.8 | 3.2*2 |
| L*W*H(m) | 4*3*2.4 | 5*3*2.4 | 6*3.5*2.4 | 7*4*4.5 | 8.2*4*4.3 |
| Weight(ton) | 12 | 14 | 22 | 28 | 36 |
