1.Photo of Single Shaft Shredder
800 Plastic Single Shaft Shredder

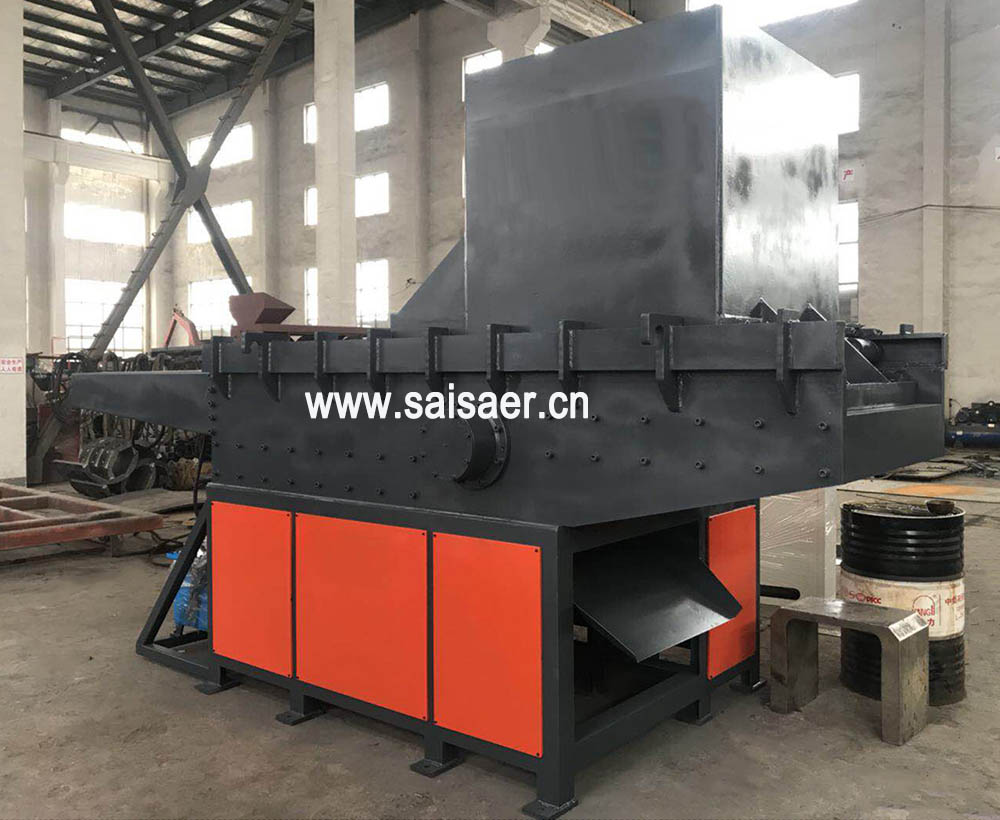

1000 Single Shaft Shredder

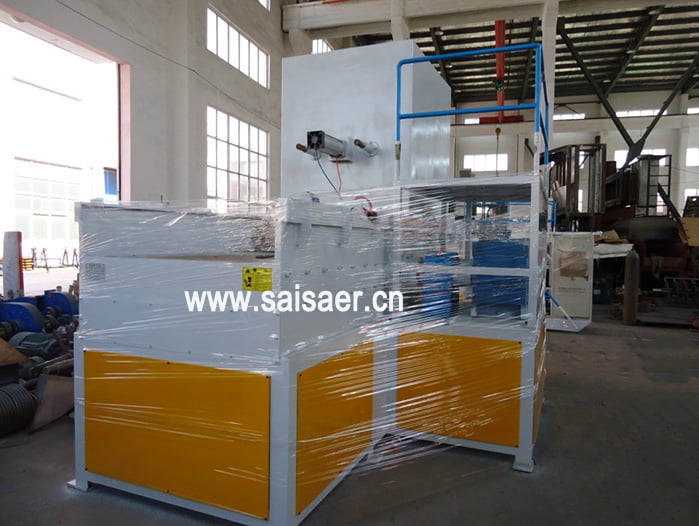

1200 Single Shaft Plastic Shredder

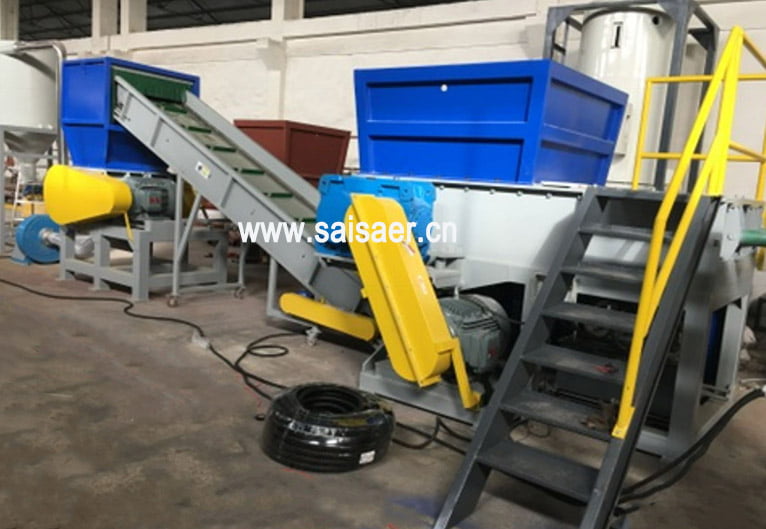

Single Shaft Shredder With Conveyor,Heavy Duty Crushing Machine
2.The Parameters of Single Shaft Shredder
| Model | Main Motor | Moving motor | Shaft size(L*D) | Capacity(kg/h) | Dimension(L*W*H) |
|---|---|---|---|---|---|
| SC650 | 22Kw | 5.5Kw | 660*310mm | 200-450 | 3.3*1.8*2.3 |
| SC700 | 30Kw | 5.5Kw | 720*310mm | 300-550 | 3.3*2*2.3 |
| SC800 | 37Kw | 5.5Kw | 825*310mm | 350-700 | 3.7*2.2*2.5 |
| SC1000 | 45Kw | 5.5Kw | 1050*310mm | 500-900 | 4*2.4*2.5 |
| SC1200 | 55Kw | 5.5Kw | 1250*310mm | 750-1100 | 5.2*3*2.7 |
3.The Character of Our Single Shaft shredder
- The material of the main shaft is 40Cr, which is integrally processed and quenched and tempered. It has good wear resistance and long service life.
- The material of the blade is SKD11. After high frequency treatment, it has strong hardness, sharp edge and wear resistance.
- The blade has 4 cutting edges. By adjusting the angle of the blade, the blade can be reused 4 times.
- By adjusting the gap of the blades, it can be adapted to crush soft and hard materials of different thicknesses and sizes.
- The box body is hydraulically moved, and the animal material is reciprocated on the knife edge without a pressing plate to compress the material, which solves the problem that the pressing plate of the traditional shredder cannot compress large pieces of material.
