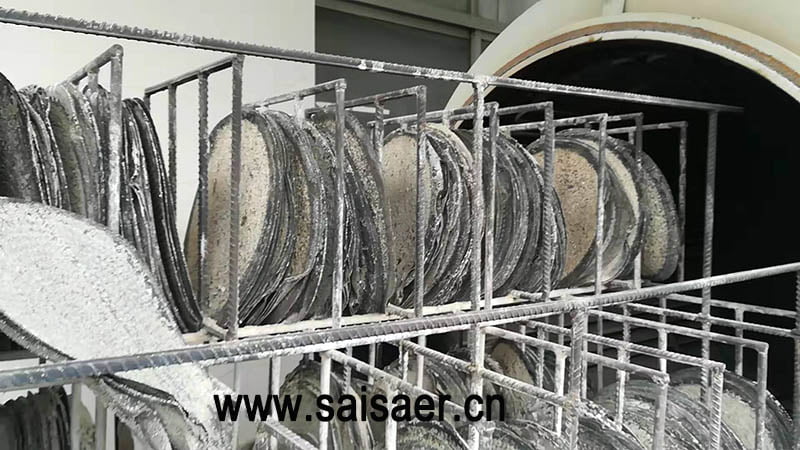

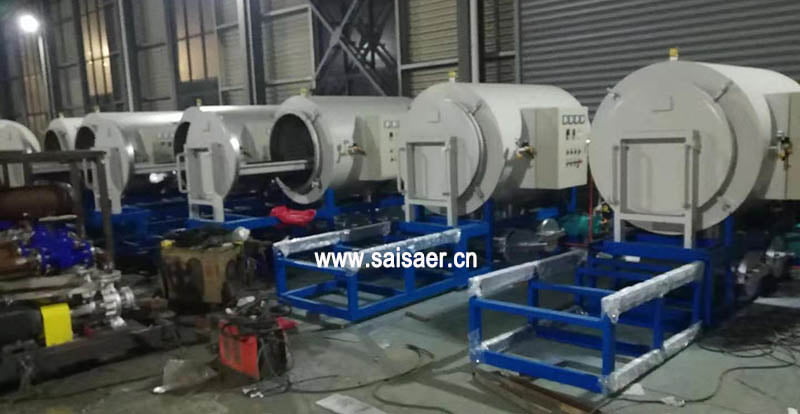

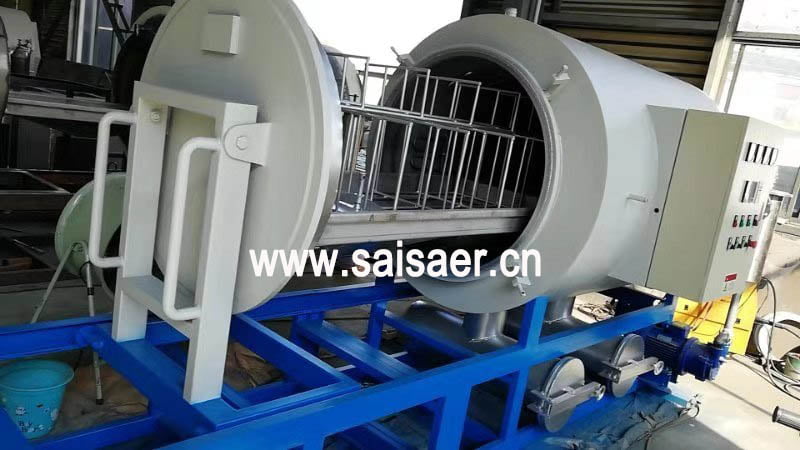

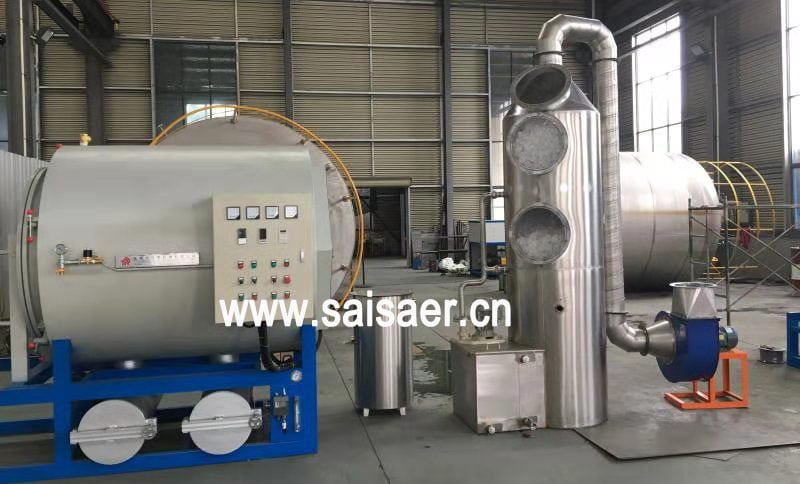

1.The photos of vacuum cleaning oven

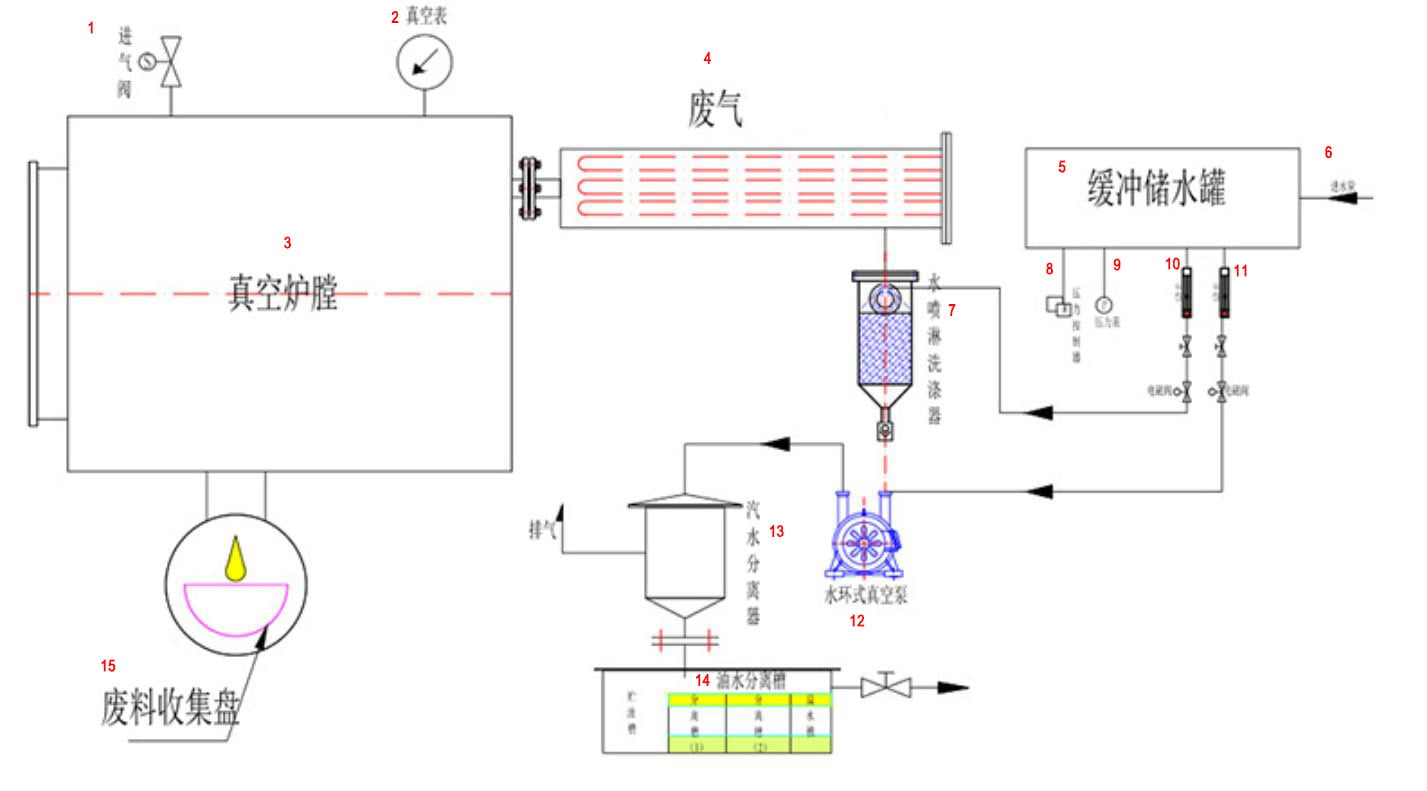

2.The principle map of working of vacuum cleaning oven
- 1.Valve for gas inlet
- 2.Vacuum meter
- 3.Vacuum cleaning room
- 4.Waste gas
- 5.Buffer water storage tank
- 6.Valve for water inlet
- 7.Water spraying washing device
- 8.Relay for controlling the pressure
- 9.Meter of pressure of water tank
- 10.Meter of rate of flow for water inlet of vacuum pump
- 11.Meter of rate of flow for water inlet of spraying tank
- 12.Water-ring vacuum pumps
- 13.Seperator for gas and steam
- 14.Seperator for water and oil
- 15.Collector for waste material
3.The video of vacuum cleaning oven
4.The parameters of vacuum cleaning oven
| Working size(Dia*L) | Heating power | Pump power | Energy consumption | Water consumption | Max.Screen numbers | Screen loading type | Working time |
|---|---|---|---|---|---|---|---|
| φ800*1000mm | 18Kw | 4Kw | 75Kwh/oven | 80-120(l/h) | 350mm*350mm/200pcs | parallel,double rows | 8h/oven |
| φ800*1500mm | 24Kw | 4Kw | 100Kwh/oven | 80-120(l/h) | 330*330mm/300pcs | parallel,double rows | 8h/oven |
| φ950*1600mm | 38Kw | 4Kw | 160Kwh/oven | 100-120(l/h) | 330*330mm/600pcs | parallel,double rows | 8h/oven |
| φ1100*1500mm | 42Kw | 4Kw | 180Kwh/oven | 100-120(l/h) | 330*330mm/450pcs | crossing,four rows | 9h/oven |
| φ1200*1500mm | 45Kw | 4Kw | 190Kwh/oven | 100-120(l/h) | 350*350mm/450pcs | crossing,four rows | 9h/oven |
| φ1200*2000mm | 54Kw | 4Kw | 180Kwh/oven | 120-150(l/h) | 350*350mm/800pcs | crossing,four rows | 10h/oven |
| φ1200*2500mm | 72Kw | 5.5Kw | 220Kwh/oven | 120-150(l/h) | 350*350mm/1000pcs | crsossing,four rows | 13h/oven |
